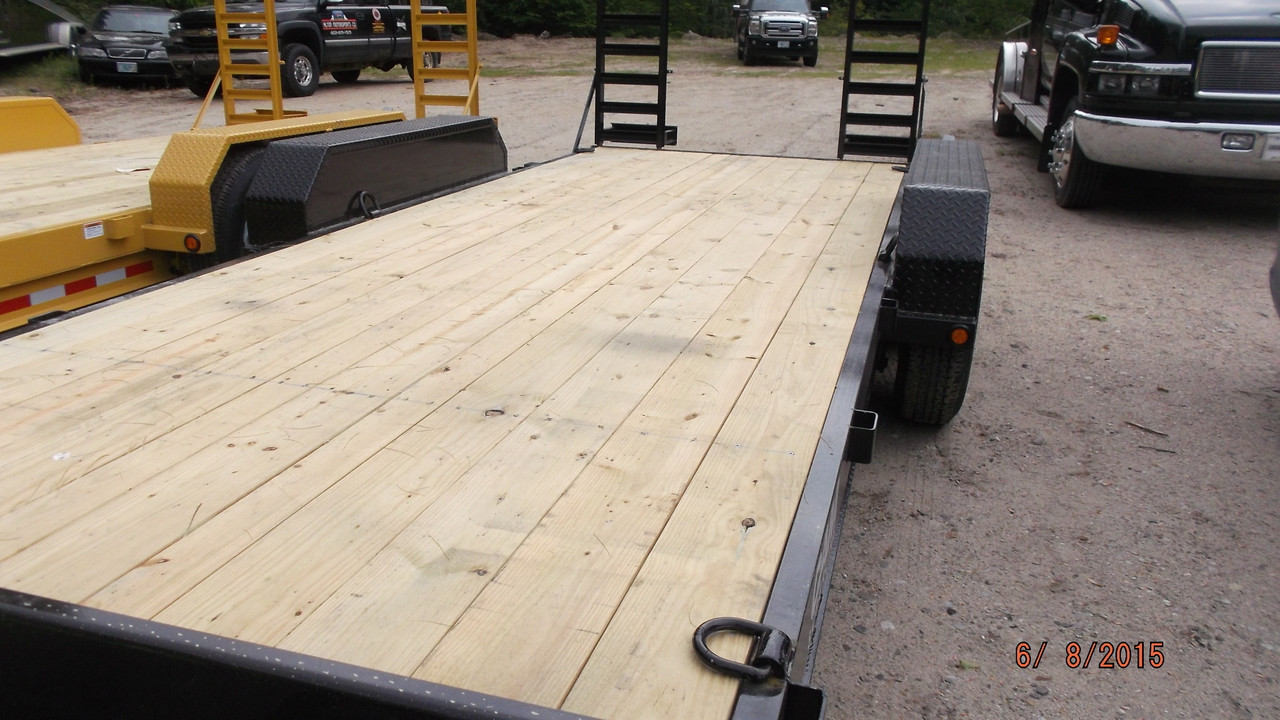

The Channel Frame Equipment Hauler is constructed using 6" channel steel for the main frame, this created a slightly wider deck width and allows for large or odd shaped cargo to extend past the edge of the bed. Built for hauling skid steers and tractors, this trailer model offers an optional pallet fork carrier and bucket carrier attachments are available for convenient, secure, on-board storage and transportation of skid steer and loader attachments.
GVWR: 13200 lbs.
Empty Weight: 2960 lbs.
Payload: 10240 lbs.
Axle Capacity: 6,000 lbs
Deck Length: 18'
Overal Width: 102"
Usable Width: 81.5"
Deck Height: 21"
Main Frame: 6" Channel @ 8.2#
Crossmembers: 3" Channel @ 4.1#
Tongue: 6" Channel @ 10.5#
Tire Size: 235/80R16LRE
Standard Features
