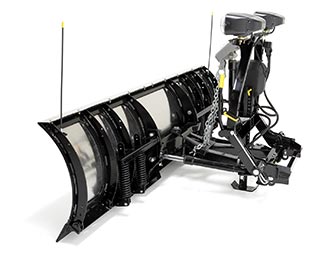

Fisher Snowplows: HDX BLADE

You won't find a commercial or municipal use snowplow built any tougher than this. Combine our exclusive X-BRACING design with premium, corrosion resistant stainless steel, and you get a snowplow that's as rugged as it is striking! Available in 8' and 9' blade sizes.

Built for the business of snowplowing, the rugged redesigned Fisher^® HDXBLADE snowplow will withstand the rigors of any and all commercial applications. These popular snowplows are the choice of the plowing professional, designed for 3/4 and 1 ton four-wheel drive trucks, as well as today's new 15,000 GVW "Super Duty" vehicles. The trip-edge is backed with a reinforced cutting bar at the bottom to increase wear resistance.

The HDX^™ snowplow features an adjustable attack angle that allows you to customize the blade’s angle of attack based on plowing surfaces, weather conditions or operator preference.

• Choose 55° for gravel or unpaved surfaces, or for scooping deep, heavy snow.
• Choose the 75° angle for asphalt or paved surfaces, and for scraping up ice and hard packed snow.
• Or choose 65° for the ultimate in plowing versatility.

With an articulating A-frame, the HDX™ snowplow pivots from side to side for a cleaner scrape. The design allows the blade to follow the contours of the plowing surface and helps the cutting edge wear more evenly for longer life. The system is built on a heavy-duty steel pivot beam for superior strength, and features a 1" diameter pivot bolt for rugged reliability.

A stabilizing leaf spring helps keep the mounting points level with the plow for easy drive-in alignment on uneven surfaces.

Typical Vehicle Applications

Chevy-GMC K2500, K3500, C3500 & C3500 HD
Ford F250 SD, F350 SD, F450 SD & F550 SD
Dodge Ram 2500 & 3500

Specifications:

FISHER HDX 8'

• Plow Type: Extreme Duty
• Blade Width: 8'
• Blade Height: 29"
• Blade Gauge: 14
• (Available with 304 stainless or carbon steel moldboards)
• Trip Springs: 4
• Ribs: 8

• Angling Rams: 1 1/2" x 12"
• Plowing Width (full angle): 7'2"
• Approx. Weight Complete: 861 lbs

• (plus vehicle mount - average 60#)
• Wear Shoes (cast iron): optional
• Cutting Edge: 1/2" x 6"

FISHER HDX 9'

• Plow Type: Extreme Duty
• Blade Width: 9'
• Blade Height: 29"
• Blade Gauge: 14
• (Available with 304 stainless or carbon steel moldboards)
• Trip Springs: 4
• Ribs: 8

• Angling Rams: 1 1/2" x 12"
• Plowing Width (full angle): 8'1"
• Approx. Weight Complete: 902 lbs

• (plus vehicle mount - average 60#)
• Wear Shoes (cast iron): optional
• Cutting Edge: 1/2" x 6"

Available Accessories

Rubber Deflector

10" Deflectors

Part #52095 (8' HD2 & HDX)

Part #52096 (9' HD2 & HDX)

18" Deflectors

Part #52098 (8' HD2 & HDX)

Part #52099 (8' 6" HD2, 9' HD2 & HDX)

BACK DRAG EDGE KIT

Part #51997 - (8' HD2 & HDX)

Part #51999 - (9' HD2 & HDX)

26240 Protube

26812-1 Plow Parka

26018-1 Mini Strobe

26019 Full Size Strobe

26020-1 Mini Bar

SHOE KIT - ADJUSTABLE (HDX)

Extend cutting edge life of your HD2 and HDX snowplow with this adjustable shoe kit. Uniquely designed to adjust for multiple attack angles of the HDX snowplow

Part #41785 (HDX)

CURB GUARD / WEAR KIT

Part #51879 - (8' HDX)

Part #51880 - (9' HDX)

BLADE WING KIT - HD2 & HDX

Part #41790 (HD2 & HDX)
