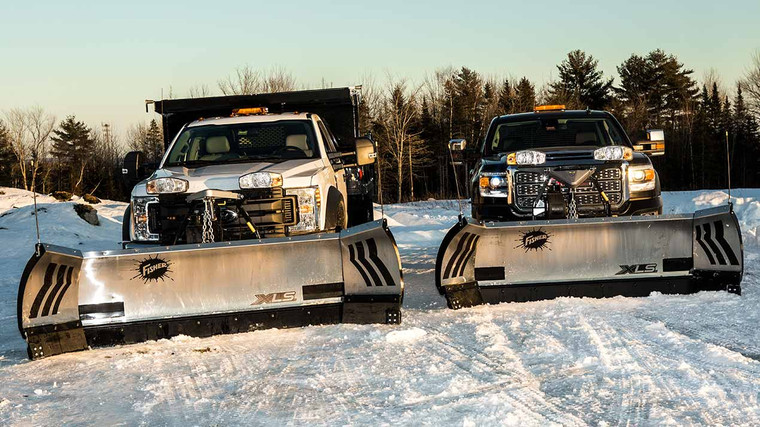

Available in powder coat or stainless steel, the XLS snow plow is available in two blade widths.
The 31" tall, 14-gauge moldboard features independent wing control and comes standard with a 6" high-carbon steel cutting edge, increasing wear resistance, and the poly wing cutting edges feature trip protection. The blade is also pre punched for easy accessory installation.
The 8' XLS retracted blade extends to 10'. Angle the 35" flared wings forward for an 8' 10" scoop position. The 8' 6" XLS retracted blade extends to 11'. You can also angle the 36" flared wings forward for a 9' 10" scoop position.
The next generation XLS™ snow plow features a heavy-duty torque tube and ten vertical ribs for substantial structural support. The tough construction of this channel provides rigidity and blade strength to eliminate buckling under extremely heavy forces.
Hydraulic wing extensions slide laterally across the structurally reinforced slide box, constructed with 3/16" heavy-grade steel to maximize snow removal capacity without buckling.
The XLS plows feature flared wings as tall as 36" to maximize snow plowing efficiency at the touch of a button with Retracted Straight, Expanded Straight, Windrow and Scoop modes. The flared-wing design can aggressively cast snow further while windrowing, making it the ultimate windrowing machine. The wings expand forming an even larger plow to move more snow and can retract for transport. The flared wings can be controlled independently, quickly changing the plow configuration from retracted to expanded, to scoop and to windrow.
The reliable, mechanical attachment design of the Minute Mount® 2 snowplow mounting system allows for easy hook-up with no tools required and no electrical switches to fail and leave you struggling out in the cold.
The vehicle mounts and lower gear are flared both vertically and horizontally to ensure proper alignment and make the drive-in connection easier.
Simply raise the pin release handle and push on the headgear to pop the pins into place.
Then, raise the jack, snap it into place and plug in the electrical connectors.
Models | 8'-10' (180209-lower) | 8'-10' (180210-higher) | 8' 6"-11' |
---|---|---|---|
Blade Width | 8' retracted 10' expanded 8' 10" scoop |
8' retracted 10' expanded 8' 10" scoop |
8' 6" retracted 11' expanded 9' 10" scoop |
Blade Height | 29" | 31" on moldboard 35" at end |
31" on moldboard 36" at end |
Blade Gauge | 12 | 14 | 14 |
Trip Springs | 4 | 4 | 4 |
Vertical Ribs | 10 | 10 | 10 |
Lift Cylinder | 1½" x 10" | 1¾" x 10" | 1¾" x 10" |
Angling Rams | 1½" x 10" | 1½" x 10" | 1½" x 10" |
Plowing Width (full angle) | 7' 2" retracted 9' expanded 7' 11" windrow |
7' 2" retracted 9' expanded 7' 11" windrow |
7' 11" retracted 10' 6" expanded 9' 6" windrow |
Approx. Weight* | 985 lb | 1110 lb | 1150 lb |
Wear Shoes | Optional | Optional | Optional |
Blade Cutting Edge | Optional | 1/2" x 6" steel | 1/2" x 6" steel |
Wing Cutting Edge | 1½" x 9" polyurethane | 1½" x 9" polyurethane | 1½" x 9" polyurethane |
Mount Type | Minute Mount® 2 | Minute Mount® 2 | Minute Mount® 2 |
All plows include: Low-profile, dual beam halogen headlamps with combination park/turn signal lights that conform to federal safety standards and E-Force Isolation Module for improved long term performance of the light system. Vehicle light switch activates plow lights — no separate in-cab switch is needed
50678 1/2" Cutting Edge
50628 Rubber Deflector
26240 Powder Coated Protube
26812-1 Plow parka
26018-1 Mini Strobe
26019 Full Sized Light
50700 Shoe Kit
